安川電機/パナソニック/オムロン製サーボ対応SIOシリーズ
サーボアンプI/Oターミナル (サーボコンSIOシリーズ)
サーボアンプI/Oターミナル(安川電機/パナソニック/オムロン製サーボ1軸対応)
特長
![](https://www.shinden-tec.jp/wp-content/uploads/ec96081e97d1f540909bcd7dfdad7147.jpg)
![](https://www.shinden-tec.jp/wp-content/uploads/3ed04bcd5c3fb82c6689479b06a2daf0.jpg)
![](https://www.shinden-tec.jp/wp-content/uploads/ec96081e97d1f540909bcd7dfdad7147.jpg)
![](https://www.shinden-tec.jp/wp-content/uploads/3ed04bcd5c3fb82c6689479b06a2daf0.jpg)
作業工数および作業効率向上
入出力状態の確認が容易
モデル一覧
モデル | 適用サーボ | 端子構成 | 動作表示ランプ | Interface サーボ側 | Interface 端子側 | Interface コネクタ側 | サイズ (W x D ㎜) | 製品設置 露出幅(㎜) |
---|---|---|---|---|---|---|---|---|
SIO-PYO | A6Nシリーズ(RTEX) A6Bシリーズ(EtherCAT) Σ7Sシリーズ (MECHATROLINK / EtherCAT) G5シリーズ(EtherCAT) | 入力:POT / NOT / HOME / DI 出力:BRAKE | PW POT / NOT / HOME / DI / BK | MDR 26P MALE | Push-in 端子台 3.5Pitch 10Pole | 53014-0710 or 相当品 | 22.0 x 38.0 | 5.0 |
SIO-PYO-E | Push-in 端子台 3.5Pitch 3Pole + e-con 3P Female * 4 | 27.0 x 38.0 | 10.0 |
一般仕様
定格電圧 | 24V DC |
定格電流 | 1A |
動作表示 | 電源:LED(Green) IO:LED(Green) EM2:LED(Red) |
絶縁抵抗 | 500MΩ以上(DC 500V) |
耐電圧 | AC500V 1min |
ケース | Polycarbonate |
端子台 | LCP |
基板 | Epoxy 1.6t |
導電板 | Cu alloy |
適合電線 (単線) | 0.2~1.5㎟ |
適合電線 (撚り線) | 0.2~1.5㎟ (AWG24~16) |
使用周辺温度 | -10℃ ~ +50℃ (結露がないこと) |
e-conプラグコネクタ適用仕様(別売品)
ボディ色 | カバー色 | プラグコネクタ製品番号(3Pin) | AWG No. | 電線断面積 ㎟ SQ. | 電線仕上がり外径 ㎜ |
---|---|---|---|---|---|
灰 | 紫 | EC-3P68VT | 26 - 28 | 0.08 - 0.13 ㎟ | 0.6 - 0.8 |
赤 | EC-3P68RD | 0.8 - 1.0 | |||
黒 | 紫 | EC-3P46VT | 24 - 26 | 0.13 - 0.21 ㎟ | 0.6 - 0.8 |
赤 | EC-3P46RD | 0.8 - 1.0 | |||
黄 | EC-3P46YE | 1.0 - 1.2 | |||
橙 | EC-3P46OG | 1.2 - 1.6 | |||
緑 | EC-3P02GN | 20 - 22 | 0.32 - 0.5 ㎟ | 1.0 - 1.2 | |
青 | EC-3P02BU | 1.2 - 1.6 | |||
灰 | EC-3P02GY | 1.6 - 2.0 |
フェルールの選定(撚り線使用時)
![](https://www.shinden-tec.jp/wp-content/uploads/0af4d2a0b284b51d0391f3b081763369.png)
適合工具
![](https://www.shinden-tec.jp/wp-content/uploads/cfb36898200b623005619229113e8c5b-e1671081362627.png)
プラグコネクタの圧接方法
![](https://www.shinden-tec.jp/wp-content/uploads/6de14bf93d187af1cc485febc49a36d2.png)
アンプ取付け時の露出幅(㎜)
![](https://www.shinden-tec.jp/wp-content/uploads/48fffe935b0071282e898ab71511d7b1-1-e1672969093369.png)

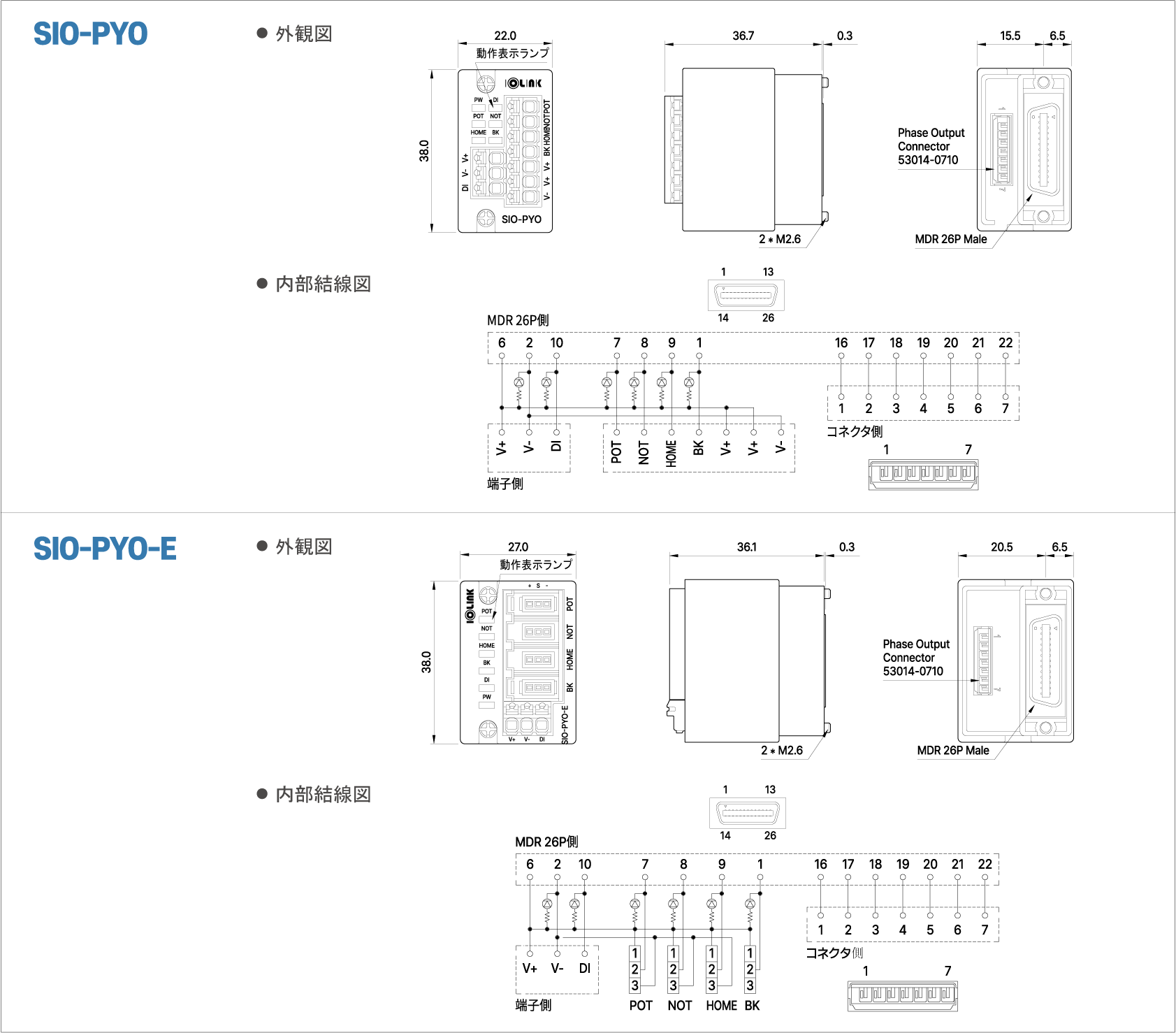

外形寸法図および結線図
![](https://www.shinden-tec.jp/wp-content/uploads/e45dfd92998a855ae6f5cffbed279d60.png)
